Overview

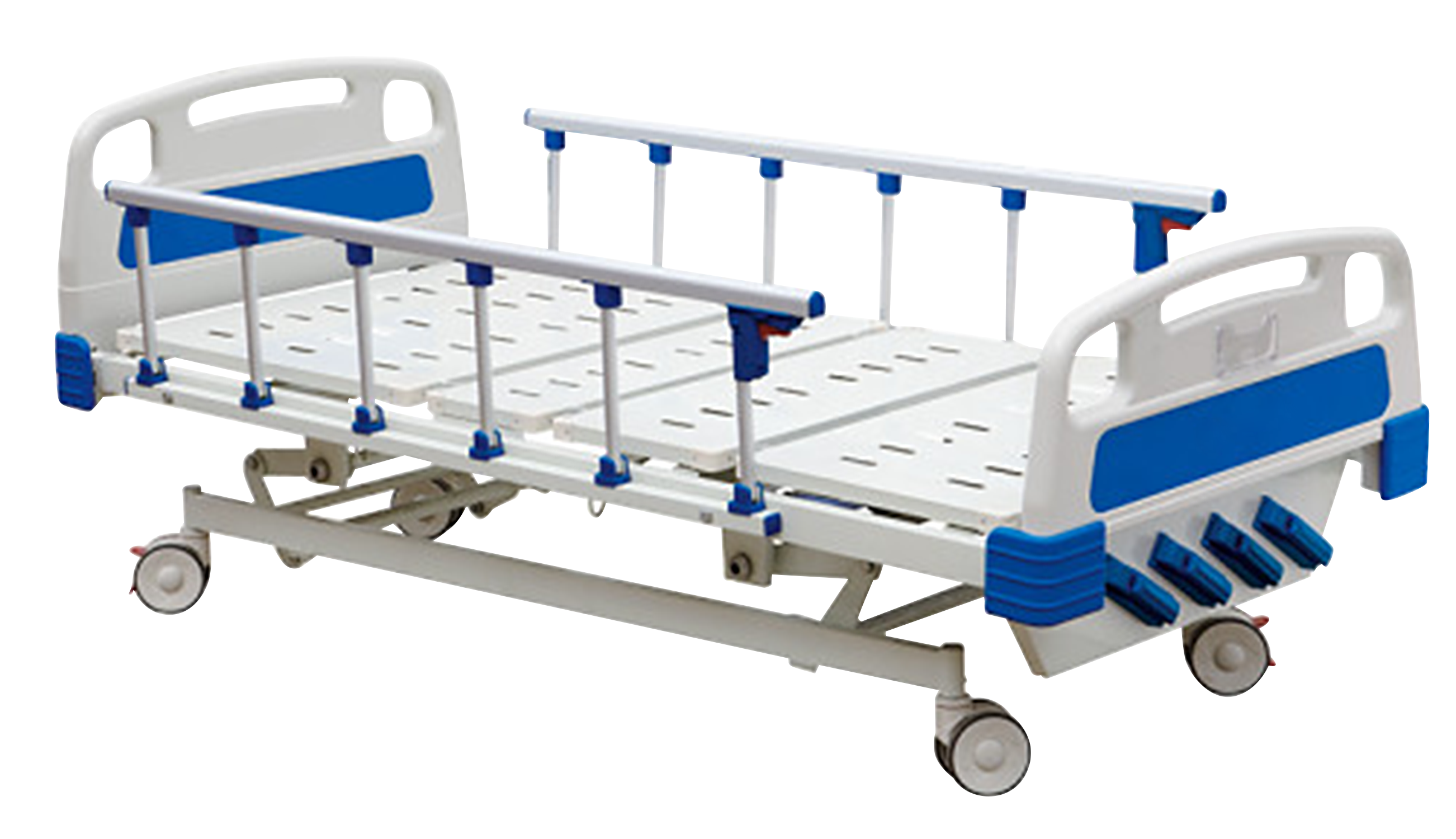

Hospital bed KHB-A201 is a standard mechanical ward bed with aluminium folding side-rails, overload protection hand crank for patient safety. Integrated manual crank tensioning spring mechanism enables patient positioning at various angular bed configurations for knee-rest and back-rest positions. Epoxy coated steel-tube frame work renders superior strength and corrosion resistance.

Specifications :

Height adjustability	450 mm to 700 mm
Back-rest angle	0° - 80° (±5°)
Knee-rest angle	0° - 40° (±5°)
Trendelenburg angle	0° - 12°
Reverse Trendelenburg angle	0° - 12°
Construction	Electrostatic powder coated S.S. tube frame with ABS head and foot board
Load capacity	250 Kgs
Other components	Urine hooks, I.V drip, heavy duty castors
System functions	Centrally-controlled brakes
Dimensions	2120 x 970 x 700 mm
Weight	103 Kgs

Features :

• - 5 functional bed inclinations (Fowler/PLR variations)
• - Adopts crank tension mechanism
• - Over-loading protection system
• - Steel tube frame with ABS head and foot board

Applications :

Used in hospital wards, primary healthcare facilities and nursing homes with specialized functions dedicated for specific wards such as general ward, nursing, orthopedic, burns, ICU, etc. designed to be adjustable at various inclinations, heights for increased comfort and well-being of the patient.

Standard_Accessories :

Sr.	Standard	Qty
1	I.V. poles	1
2	Urine bag hook	1
